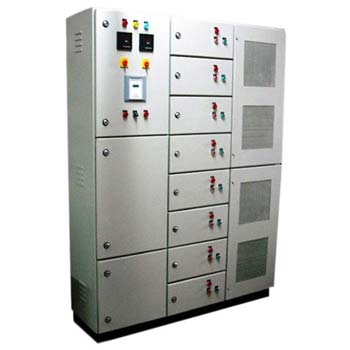

APFC Panel has microcontroller based programmable controller which switches the capacitor banks of suitable capacity automatically in multiple stages by directly reading the reactive load (RKVA) which works in the principle of VAR sensing tends to maintain the PF to 0.99 Lag. The capacitor banks may be selected in number of stages as 4/6/8/10/12/14 according to the load pattern.
Install APFC Panel to avoid penalties and enjoy the benefits automatically.
Features
- Modular design, Non-compartmentalized,
- Panel Colour RAL 7032
- Indoor, Floor mounted, cable entry from bottom/Top.
- Incomer MCCB, 3 pole, 25KA / 35KA
- Step protection MCB / MCCB
- Step switching
- Capacitor duty contractors with Damping Resistors.
- Microprocessor controlled relay Germany Make
- Switching option – Auto / Manual
- Busbar – Aluminium / Copper
- Protection class IP42 / 53
- Capacitors – Heavy Duty Can / Box type 440, 480, 525
Compatible
- As per IE Standers, EC 61921, Wide Range
- 20KVAr to 400KVAr
Benefits
- Consistency in Power Factor under fluctuating load conditions.
- Elimination of Power factor penalty from electricity board
- Prevention of leading power factor
- Energy savings
Applications
- Fluctuating loads such as
- Steel Rolling mills
- Chemical industry
- Cement plant
- Sugar plant
- Textile
- Hospitals / Hotels
- Building segment
- Automobile industry etc
- Foundry, Coir, Food, Engineering
